Car Dash Camera With Night Vision : HD 1080P Car Video Recorder

Lens: 6-piece spherical lens set, F2.0 aperture, UV filter, 170°FOV

Processor: Generalplus 6248

Image Sensor: Full HD sensor SC2363P, 1/3 inch CMOS, 3um pixels, ISO sensitivity 4.0 v/lux-sec

Display: 3.0-inch IPS LCD (2.5D) 16:9/640*360

Battery: 250mAh built-in polymer lithium battery with high thermo-stability

Power Cable: 3.5m, polycarbonate

Power Spec.: DC 5V/1.5A, mini USB

Coding: H.264, MOV

Video Resolution: 1080FHD(1920 * 1080 30FPS) / 720P(1280 * 720 30FPS)

G-sensor: Triaxial Acceleration Sensor (DA380)

Storage: TF (Micro SD) card, 8~64GB, Class 10 or upper is recommended, not included

Parking Monitor: Support

Motion Detection: Support

Audio: Built-in noise-canceling microphone, high-power built-in speaker

Language: English, French, Deutsch, Spanish, Italian, Japanese, Russian, Portuguese, Korean , Chinese

AZDOME M11 3 inch 2.5D IPS Screen 1080P Car DVR

AZDOME-M11 adopt 6G all-glass plus IR filter lens, 2MP 1/3 high sensitivity CMOS sensor and noise reduction processor to promote image processing ability for brighter and clearer image.Innovative H.264 image processing Lowering the system load to ensure technology provides the most fluenthigh definition video.

2.5D Curved Glass IPS Screen

-Better Color Reproduction

-Wide Viewing Angel

-Better Sunlight Visibility

-Longer Lifespan

Super Night Vision

With the Revolutionary Super Night Vision Technology, the car dash cam can capture clearer videos and photos even in low-light night conditions. F/2.0 Largest Aperture Available + 6-Glass Wide Angle Lens with Proprietary Focal Length of the lens gives you more clear smaller details.

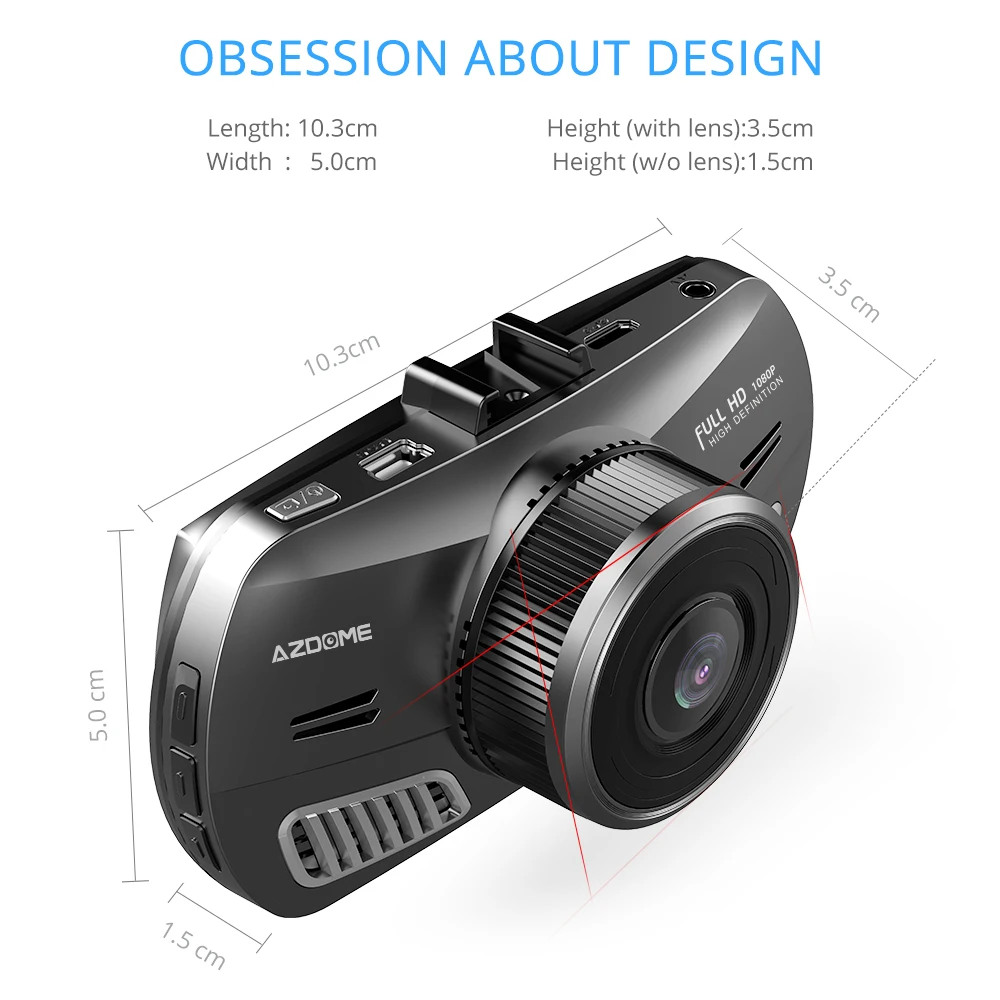

Obsession About Desigh

-Material: Zinc Alloy Shell + Polycarbonate

-Size: L103mm * W50mm * H35mm (with lens)

-Weight: 140g / 4.9oz (dash cam unit)

-Color: Black

-Mount: Suction

Loop Recording

With loop recording enabled, users will have the option to record videos in loops of 3 / 5 / 10 minute video files, and record it on the TF card until the space is exhausted. Then, the oldest file will be automatically overwritten. But, corresponding to gravity sensing, motion detection, parking monitoring or emergency files can not be automatically overwritten.

Parking Monitor

24-Hours Parking Monitor works on an internal battery. If someone hits your car and impact reaches the G-Sensor Level, then the camera will turn ON and record 1-min video, then LOCKS IT & SAVES IT…

G-Sensor

The Built-In G-Sensor gets activated by sudden collision and locks the current video file as an important evidence for further investigation.

G-Sensor also records the 3-Axis impact data on a X-Y-Z Axis graph, so you can see and prove when and where you hit that pot hole on the road or where exactly the impact occurred on the google maps.

Reverse Image

Shows a distance closer than the actual distance. Rear View Camera (Optional)

The wide-angle lens

Time-Lapse Video

Time-Lapse Video allows you to capture specific images per second at a much lower rate. So when you combine and play those images at the normal rate, everything seems to be moving faster in time lapse.

Service Supporting

At AZDOME, our goal is to keep working hard to make innovative hardware & software of the camera to give you that personalized experience.

We provide updates for Camera Firmware, Software, iOS & Android App Improvements periodically for FREE.

M11 Standard Packing List

1 * Dash Cam Unit
1 * Dual USB Car Charger
1 * Power Cable (3.5m)
1 * Suction Mount
5 * Wiring Buckle
1 * Trim Removal Tool
1 * User Manual

Note: TF Card shall be purchased separately.

M11 + Rear View Camera

1 * Dash Cam Unit
1 * Dual USB Car Charger
1 * Power Cable (3.5m)
1 * Suction Mount
5 * Wiring Buckle
1 * Trim Removal Tool
1 * User Manual

-1 x Rear View Camera (It is 6m / 19.6 ft)

M11 + Rear View Camera + Hard Ware Kit

1 * Dash Cam Unit
1 * Dual USB Car Charger
1 * Power Cable (3.5m)
1 * Suction Mount
5 * Wiring Buckle
1 * Trim Removal Tool
1 * User Manual

-1 x Rear View Camera (It is 6m / 19.6 ft)
-1 x Hard Ware Kit (3.5m / 11.4 ft)

M11 + Rear View Camera + Mirror Mount Holder

1 * Dash Cam Unit
1 * Dual USB Car Charger
1 * Power Cable (3.5m)
1 * Suction Mount
5 * Wiring Buckle
1 * Trim Removal Tool
1 * User Manual

-1 x Rear View Camera (It is 6m / 19.6 ft)
-1 x Mirror Mount Holder

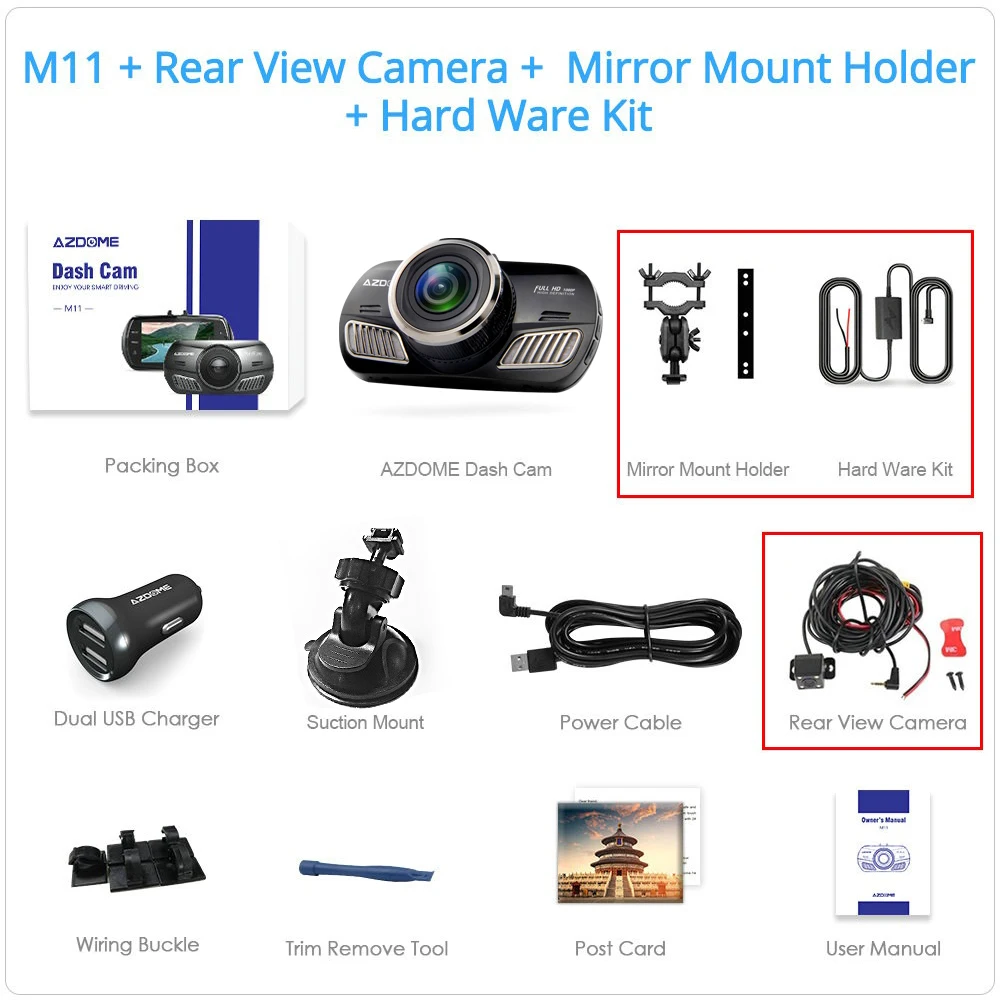

M11 + Rear View Camera + Mirror Mount Holder + Hard Ware Kit

1 * Dash Cam Unit
1 * Dual USB Car Charger
1 * Power Cable (3.5m)
1 * Suction Mount
5 * Wiring Buckle
1 * Trim Removal Tool
1 * User Manual

-1 x Rear View Camera (It is 6m / 19.6 ft)
-1 x Mirror Mount Holder
-1 x Hard Ware Kit (3.5m / 11.4 ft)

Tips:

-Battery is mainly used to save files in emergency. Please always connect Dash Cam to external power while it is in use.

-Be sure to format your TF card with your Dash Cam for optimal use. Failing to format TF card may result in card error.

-Requires 8 – 64 GB Class 10 or above micro SD card, NOT INCLUDED. We recommend Kingston /Samsung /SanDisk card. Avoid fake memory card.

-If no operation is detected after 1 minute, the device will enter screensaver mode. Press any button will reactivate the screen. If you don’t need this function, you can close the backlight setting.
